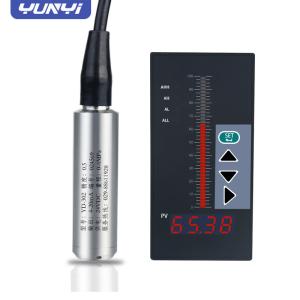

Factory Supply High Quality Liquid Water tank Level Meter Sensor

  • 1
  • 2

Brand Name : Yunyi

Model Number : YD322

Certification : CE

Place of Origin : China

MOQ : 1

Price : 3568.50usd

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000/month

Delivery Time : 5-7 days

Packaging Details : carton or wooden box

Name : Factory Supply High Quality Liquid Water tank Level Meter Sensor

Sensor material : SS316

Cable material : PE, PU, PTFE

Sensor dia : 27mm

Power : 10…36V DC;5V

Output : 4-20mA, 0-5V, 0-10V, RS485

Accuracy : +/-0.5%FS

Overload : 200%

Work temp : 0-60C

Protection : IP68

Measure range : 0-200m

Contact Now

Factory Supply High Quality Liquid Water tank Level Meter Sensor

1. Working principle of immersion level meter
Static pressure measurement principle:
Based on the principle that liquid static pressure is proportional to liquid level height (
P=ρgh, the static pressure at the bottom of the liquid or at a certain depth is measured by the sensor and converted into liquid level height.

Composition structure:

Pressure sensor: core component, converts static pressure signal into electrical signal (such as 4-20mA, RS485, etc.).

Probe (transmitter): directly immersed in the liquid, usually with anti-corrosion material (such as 316 stainless steel, ceramic).

Cable or air guide hole: balance atmospheric pressure (two designs: cable type and air guide type).

Factory Supply High Quality Liquid Water tank Level Meter Sensor

Specification of 19mm dia Submersible Level Transmitter 4-20mA rs485 level sensor

Pressure Span 0...1…500mH2O
Output Signal 4...20mA
Supply Input 10…36V DC
Accuracy +/-0.5%FS
Non-Linearity +/-0.250% FS
Repeatability +/-0.10% FS
Thermal Error +/-0.2% FS/oC
Zero Drift +/-0.25% FS
Long Term Stability +/-0.5% FS/Year
Over Pressure Safety 200%
Operating Temperature 0oC to 50oC
Response Time <1ms (10-90%FS)
Diaphragm titanium alloy Stainless Steel
Case Material 316L Stainless Steel
Compatibility Liquid compatible with titanium alloy
Protection IP68

Factory Supply High Quality Liquid Water tank Level Meter SensorFactory Supply High Quality Liquid Water tank Level Meter Sensor
