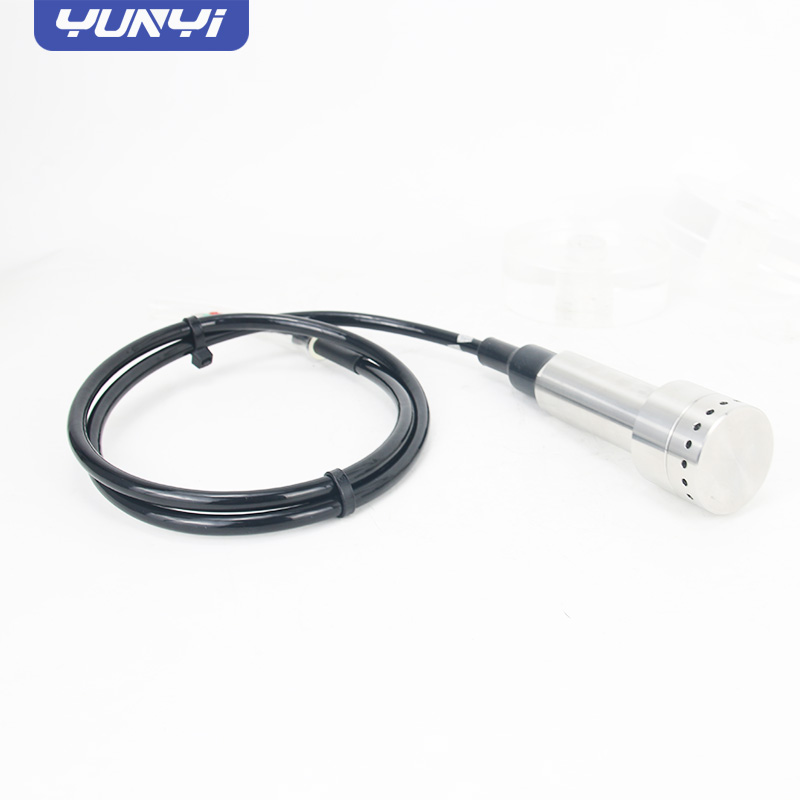

4-20mA Submersible Liquid Level Transmitter Piezometer Water tank Level Probe Sensor

  • 1
  • 2

Brand Name : Yunyi

Model Number : YD323

Certification : CE

Place of Origin : China

MOQ : 1

Price : 50-70usd

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000/month

Delivery Time : 5-7 days

Packaging Details : carton or wooden box

Name : 4-20mA Submersible Liquid Level Transmitter Piezometer Water tank Level Probe Sensor

Sensor material : SS316

Cable material : PE, PU, PTFE

Sensor dia : 27mm

Output : 4-20mA, 0-5V, 0-10V, RS485

Accuracy : +/-0.5%FS

Work temp : 0-60C

Protection : IP68

Measure range : 0-100m

type : Anti-clogged

Contact Now

4-20mA Submersible Liquid Level Transmitter Piezometer Water tank Level Probe Sensor

The anti-blocking immersion level meter is a level measuring instrument specially designed for liquids that are easy to precipitate, viscous, contain impurities or are easy to crystallize. Through special structure or material optimization, it can effectively prevent the probe from being blocked and ensure long-term stable measurement.

1. Anti-blocking design principle
Isolation diaphragm structure

Flat diaphragm sensor (no cavity design) is used to prevent impurities from accumulating inside the probe.

The diaphragm material can be 316L stainless steel, ceramic or PTFE coating, which is corrosion-resistant and not easy to adhere to dirt.

Self-cleaning design

Conical or spherical probe: Reduce sediment adhesion, and automatically flush the surface when the liquid flows.

Vent anti-blocking technology: The air-guided level gauge uses a special filter or hydrophobic membrane to prevent impurities from clogging the air pressure compensation channel.

Optional flushing interface

Some models support external flushing water/air source, and regular automatic or manual cleaning of the probe (suitable for high-viscosity media such as sludge and petroleum).

4-20mA Submersible Liquid Level Transmitter Piezometer Water tank Level Probe Sensor

4-20mA Submersible Liquid Level Transmitter Piezometer Water tank Level Probe Sensor


China 4-20mA Submersible Liquid Level Transmitter Piezometer Water tank Level Probe Sensor factory

4-20mA Submersible Liquid Level Transmitter Piezometer Water tank Level Probe Sensor Images
