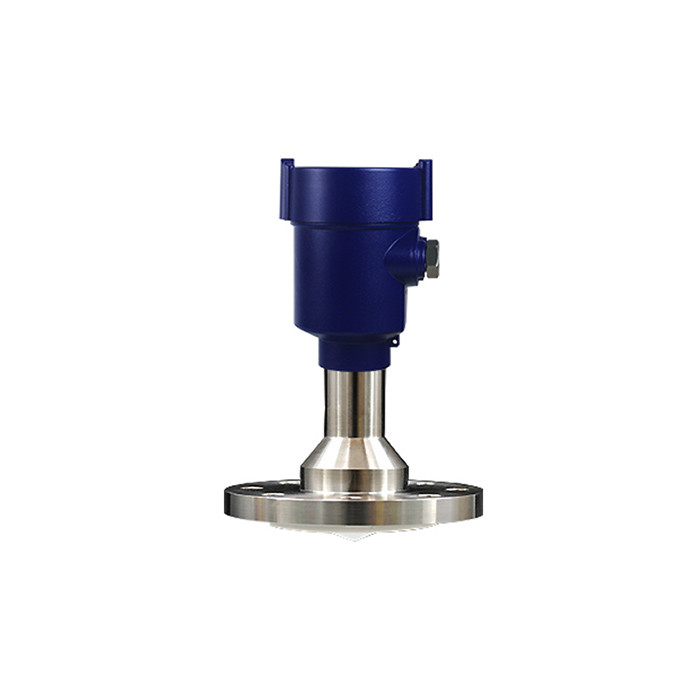

Water Level Meter Guided Wave Transmitter LCD Radar Hazardous Liquids Level Sensor

  • 1
  • 2

Brand Name : Yunyi

Model Number : YUNYI 806 series

Certification : CE，ROHS

Place of Origin : China

MOQ : 1pc

Price : USD353-USD569/PC

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10PCS/week

Delivery Time : 7days

Packaging Details : Standard Carton Box

Item : 80Ghz radar level sensor for various liquid

Model : YUNYI A806

Pessure : -0.1 - 0.5MPa

Application : Temperature resistant, pressure resistant,slightly corosive liquids

Temperature : -40~250°C

Output : 4-20mA, RS485,Hart, Modbus

Measure range : 60m

Keywords : Radar Level Sensor Gauge 80Ghz Radar Water Level Meter

Contact Now

Water Level Meter Guided Wave Transmitter LCD Radar Hazardous Liquids Level Sensor

Description Water Level Meter Guided Wave Transmitter LCD Radar Hazardous Liquids Level Sensor
Non-contact radar level gauges (radar level meters/transmitters) utilize 26GHz/24GHz transmission frequencies to enhance measurement range and accuracy. Optimized antennas and upgraded processors enable high-speed signal analysis, significantly improving instrument performance to overcome complex conditions and deliver precise measurement data.

Specification Water Level Meter Guided Wave Transmitter LCD Radar Hazardous Liquids Level Sensor

Measuring range
0-10 m/0-20m
Signal output
4~20mA/HART/Modbus(2 wires/4 wires)
Signal line specification
2 Wire/4 Wire
Power supply voltage
24VDC (second -line) 24VDC/85-265VA
Measurement accuracy
±5mm
Process temperature
-40~150℃
Frequency Range
80GHz
Explosion -proof
ExiaⅡCT6 Gb
Process connection
G1-1/2" Thread/flange (optional)
On -site display
4 -bit LCD LCD display
Application
Temperature resistant, Pressure resistant.Slightly Corrosive Liquids

Water Level Meter Guided Wave Transmitter LCD Radar Hazardous Liquids Level Sensor

Advantages of Water Level Meter Guided Wave Transmitter LCD Radar Hazardous Liquids Level Sensor

1. Versatile Measurement

Continuously measures liquids, particles, and slurries without interference from medium changes, temperature fluctuations, inert gases, steam, dust, or foam.

2. High Precision & Durability

Achieves ±1mm accuracy with a 60m range, withstands extreme conditions (250°C, 40kg pressure), and ensures reliable performance in harsh environments.

3. Safety & Compliance

Designed for explosion-hazardous areas, meeting strict safety standards for industrial applications..


China Water Level Meter Guided Wave Transmitter LCD Radar Hazardous Liquids Level Sensor factory

Water Level Meter Guided Wave Transmitter LCD Radar Hazardous Liquids Level Sensor Images
