400C 26G HZ RS485 Smart Radar Level Meter Wireless Level Transmitter For Solid Powder Water liquid
Description of 400C 26G HZ RS485 Smart Radar Level Meter Wireless Level Transmitter For Solid Powder Water liquid
The radar level meter antenna emits a very narrow microwave pulse. This pulse propagates in space at the speed of light. When it encounters the surface of the measured medium, part of its energy is reflected back and received by the same antenna. The time interval between transmitting and receiving pulses is proportional to the distance from the antenna to the surface of the measured medium. Due to the extremely high propagation speed of electromagnetic waves, the time interval between the transmitting pulse and the receiving pulse is very small (on the order of nanoseconds), and it is difficult to confirm. Accurately identify the time interval between the transmitting pulse and the receiving pulse, so as to further calculate the distance from the antenna to the surface of the measured substance.
Specification of 400C 26G HZ RS485 Smart Radar Level Meter Wireless Level Transmitter For Solid Powder Water liquid
Application: Suitable for various storage containers, liquids, slurries, solids such as: water liquid storage tanks, acid-base storage tanks, slurry storage tanks, solid particles, small oil storage tanks
Measuring range: 30 meters
Process Connection: Flange
Medium temperature: -40-250℃
Process pressure: -0.1~4.0Mpa
Accuracy: ±10mm
Repeatability: ±2mm
Frequency range: 6.8GHz
Explosion-proof grade: Exib IIC T6 Gb
Protection class: IP67
Signal output: 4…20mA/HART (two wires)
Feature of 400C 26G HZ RS485 Smart Radar Level Meter Wireless Level Transmitter For Solid Powder Water liquid
Using high-frequency dual-core processing technology, the echo signal processing is faster and more reliable.
The measurement range of 100m is especially suitable for the harsh environment with large range and full of dust.
The adoption of the sight has effectively improved the reliability of the measurement of inclined solids.
The signal-to-noise ratio is extremely high, and the anti-interference ability is strong.
Intrinsically safe infrared hand-held device programming, to achieve wireless remote settings.
Application of 400C 26G HZ RS485 Smart Radar Level Meter Wireless Level Transmitter For Solid Powder Water liquid
It is used for non-contact continuous measurement of the level of liquids, slurries and granular materials. It adopts the measurement method of microwave pulse (PTOF) and can work normally in the industrial frequency band. The beam energy is low and can be installed in various metal and non-metal containers or pipes, without harm to the human body and the environment.

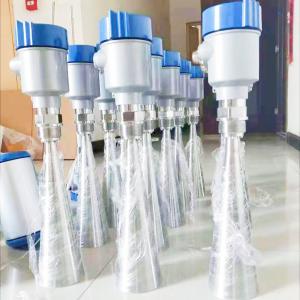

Detaild picture of 400C 26G HZ RS485 Smart Radar Level Meter Wireless Level Transmitter For Solid Powder Water liquid
