High Accuracy Mass Flow Meters, High Quality Gas Flow Meter 0 ~ 25slpm
Description
The MF4001 sensors from YUNYI utilize advanced MEMS for superior performance. Tailor-made for low flow rates between 30 sccm and 1000 sccm, these devices combine a custom housing with smart electronics to ensure high sensitivity and precision. Made of sturdy polycarbonate, they are chemically resistant and maintain functionality across varying temperatures. With a robust build, they can handle up to 5 bar overpressure, ensuring reliability in harsh environments.
Specification
| High Accuracy Mass Flow Meters, High Quality Gas Flow Meter 0 ~ 25slpm |
| Model | Value | Unit |
| Flow Range | 0~30, 100, 200, 500, 1000, or customer specified | sccm |
| Turn-down Ratio | >100:1 |
| Accuracy1 | ±(1.5+0.5 FS) | % |
| Repeat ability | ±0.25 | % Reading |
| Null Shift | ±30 | mV |
| Output Shift | ±0.2 | %/℃ |
| Response Time2 | 65 (Default, 4, 8, 16, 33, 131 selectable | ms |
| Output | Linear: I2C, Analog 0.5~4.5V DC |
| Pressure Drop3 | <350 | Pa |
| Pressure Range | -0.08 ~ +0.5 | MPa |
| Power Supply4 | 8~24 V DC, 20mA |
| Power Consumption | <120 | mW |
| Working Temperature | -10 ~ +55 | ℃ |
| Pins Out | 5 Pin, 2.54mm centers, 0.635 mm square |
| Calibration5 | Air @ 20℃, 101.325 kPa |
| Packaging Material | Polycarbonate |
| Dimensions | 62×52×12.8 | mm3 |
| Weight | 15 | g |
| Storage Temperature | -20 ~ +65 | ℃ |
| Humidity | <95 % RH (No icing or condensation |
Notes:
- Accuracy is denoted by ±(1.5% of Reading + 0.5% of Full Scale). For precise flow measurements, allow the sensor to warm up for 1 minute after power-up.
- The sensor's response time is influenced by the ADC Sampling rate and data processing algorithm. It has a default response time of 65 milliseconds, which can be adjusted through RS232 communication.
- The maximum pressure drop is observed at a flow rate of 1000 sccm. For sensors with 500 sccm capacity, the pressure drop will be less. In the case of 30, 100, and 200 sccm flow sensors, the flow pipe is narrower, resulting in a maximum pressure drop of less than 20 Pa at a flow rate of 200 sccm.
- A DC power supply is required, with a minimum output current of 50mA. However, the actual operational consumption of the sensor is lower than this value.
- Calibrations for other gases are available upon request, offering flexibility for various applications.
Mechanical Dimensions
Sensor Selection
Features
! Low mass flow range from 0~30 sccm up to 0~1000sccm
! Outstanding Accuracy of ±1.5%
! Fast response (4 ms selectable)
! R Pressure rating up to 5 bar (73 psi)
! Analog and / or digital user interface
! Easy installation
Applications
The versatile MF4001 mass flow sensor finds applications in a wide range of industries, including instrumentation such as GC mass spectrometry, leak detection, process control, gas flow metrology, and medical applications. It offers flexibility and reliability for various measurement needs.
The MF4001 operates on a power supply of 8~24V DC and features both analog and digital user interfaces. The analog output provides a linearized signal ranging from 0.5 to 4.5V DC, corresponding to the flow rate from 0 to full scale. The digital output is available through RS232 or I2C protocols, allowing for convenient data transmission and integration with other systems. Detailed communication protocols for RS232 and I2C can be found in the provided manual.
The sensor's calibration is typically performed using nitrogen gas at a standard temperature of 20℃ and pressure of 101.325kPa. However, upon request, the MF4001 can be calibrated with other gases and under different conditions to meet specific application requirements. This customization ensures accurate measurements in diverse operating environments.
Related products
FAQ
Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Product Tags:
|
|

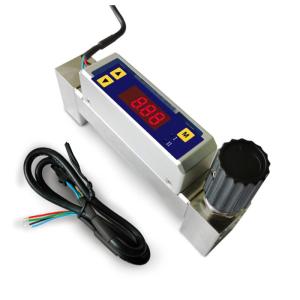

High Precision Gas Flow Meter With Low Flow Rate Capabilities Shelok MF4001 Images
|
