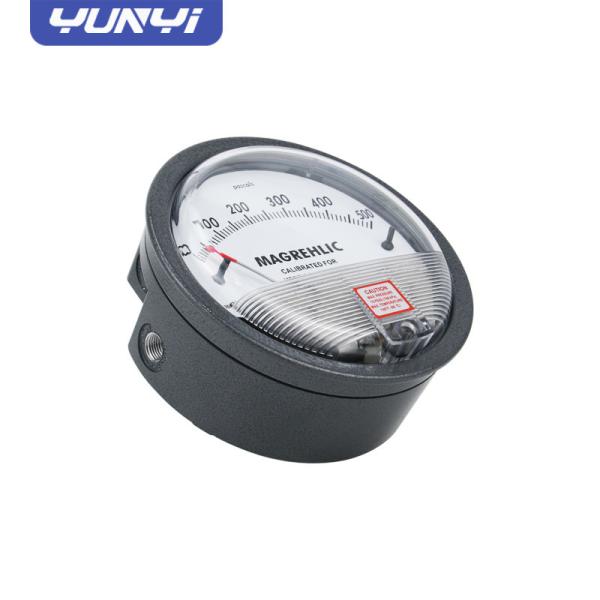

Description Micro pressure manometer differential air pressure gauge
The 2000 series differential pressure gauge is an advanced instrument designed for measuring air or non-corrosive gas pressures with exceptional accuracy. It boasts a versatile range of settings, offering a minimum measurement capability from 0-30Pa and extending to a maximum of 0-30KPa. This wide range caters to both low and high-pressure applications, making it suitable for diverse industrial uses. The availability of 88 different range options, along with the choice between metric or imperial units, provides users with the flexibility to select the most appropriate setting for their specific needs, ensuring compatibility with various international standards.
Engineered with cutting-edge technology, this differential pressure gauge utilizes frictionless magnetic components that enable rapid and precise measurements of micro-pressure levels. It is capable of detecting positive pressures, negative pressures (indicative of vacuum conditions), or differential pressures, offering a comprehensive solution for a broad range of pressure monitoring scenarios. The innovative design eliminates common issues such as wear, hysteresis, and clearance, which can compromise the performance of conventional pressure gauges. Moreover, it is not affected by filling, vaporization, or freezing, ensuring consistent and reliable performance across varying environmental conditions.
The robustness of this pressure gauge is further enhanced by its anti-vibration and anti-shake properties, allowing it to maintain high precision in environments where stability is challenging. Its high overpressure capacity means it can withstand brief periods of pressure beyond its normal operational limits without damage. Additionally, the design includes protection against impact, shock, and overload, safeguarding the instrument from potential accidents and extending its operational life in demanding field applications.
In summary, the 2000 series differential pressure gauge represents a significant advancement in pressure monitoring technology. Its combination of advanced design features, including frictionless magnetic components, multiple range settings, and protective measures against environmental factors, makes it an ideal tool for industries and applications requiring high-precision pressure measurements.
Specification Micro pressure manometer differential air pressure gauge
| Medium: | air and non-combustible, compatible gases (optional gas) |
| Housing: | cast aluminum housing or ABS shell, glass beveled panels. Dark gray coating, can withstand 168 hours salt spray test |
| Accuracy: | 2% FS (mm units, and the range with the corresponding pa) |
| Pressure range:. | -20Hg To 15 psig (-0.677 bar to 1.034 bar) |
| Temperature range: | 20 to 140 ° F (-6.67 to 60 ° C) |
| Hole size: | 114mm |
| Mounting Orientation: | Diaphragm in vertical |
| Connections: | same 1/8 "NPT high and low pressure fittings, one pair on the side, one pair in the back |
| Weight: | 500g / only |
| Standard accessories: | 2pcs 1/8 "NPT threaded connectors for high and low pressure fittings can be connected with a rubber tube; two 1/8" NPT plug for blocking the remaining two high and low pressure ports; three a threaded countersunk mounting coupling (mounting ring, according to buckle holder for three interfaces to replace MP and count on attachments HP) |
Detailed Images Micro pressure manometer differential air pressure gauge
Dimension and installation Micro pressure manometer differential pressure gauge
Applications Micro pressure manometer differential air pressure gauge
