High Magnetic Compatibility Smart Water Pressure Sensor for Accurate Readings

Name: High Magnetic Compatibility Smart Water Pressure Sensor for Accurate Readings
Brand: Clouds
Price: 1 USD

China High Magnetic Compatibility Smart Water Pressure Sensor for Accurate Readings factory

Brand Name : Clouds

Model Number : YD31

Certification : ISO CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union, paypal

Supply Ability : 50000 pcs per year

Delivery Time : 5-10 working days

Packaging Details : standard export package

Sensor Type : Ceramic pressure sensor

Type : small

Supply Power : 10-36VDC (Standard 24VDC)

Pressure Port : M20×1.5 G1/2 or customize

Pressure Type : differential, gage, absolute, negative

Protection Grade : IP65

Protection Level : IP67

Contact Now

Description -0.1MPa-0-100MPa Accuracy 0.1 0.2 0.5 1 YD31 Pressure transmitter DC24V

0-5v air compressor pressure transducer without liquid transmission, the pressure directly on the front surface of the ceramic diaphragm, so that the diaphragm has a small deformation, thick film resistance printed on the back of the ceramic diaphragm, connected into a Wheatstone bridge (closed bridge), due to the piezoresistive effect of the varistor, the bridge is generated with a high linearity proportional to the pressure, and the voltage signal is proportional to the excitation voltage.
Specification -0.1MPa-0-100MPa Accuracy 0.1 0.2 0.5 1 YD31 Pressure transmitter DC24V

Pressure	-100KPa~100MPa Absolute or Sealed gauge pressure
Power supply	Between 12~36V
Output	Current ,Voltage, Digital signal optional (see option page)
Overload	2 times the basic overload
Material	Ceramic + stainless steel 316
Seal	Fluorine rubber seal non-internal seal
Thread	Optional (see option page)
Accuracy	0.1 0.2 0.5 1
Warming	±0.08FS/°C
Sound frequency	200HZ
Temperature	Medium temperature -30 ~ 100 °C Ambient temperature -30 ~ 80 °C
Protection	IP65 or IP67 High magnetic compatibility

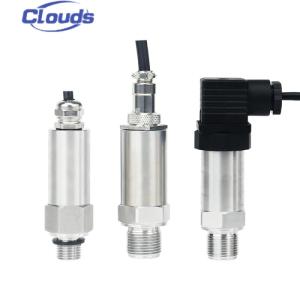

Detailed Images -0.1MPa-0-100MPa Accuracy 0.1 0.2 0.5 1 YD31 Pressure transmitter DC24V

High Magnetic Compatibility Smart Water Pressure Sensor for Accurate Readings

Applications -0.1MPa-0-100MPa Accuracy 0.1 0.2 0.5 1 YD31 Pressure transmitter DC24V

Process control, environmental control, hydraulic and pneumatic equipment, servo valves and drives, chemicals and chemical industry and medical instrumentation and many other fields.

Selection Guide -0.1MPa-0-100MPa Accuracy 0.1 0.2 0.5 1 YD31 Pressure transmitter DC24V

0-5v disposable water pressure transducer
YD-31	Base Model
	Code	Electrical connection
	B	Hessman connection
	C	Direct outlet
	D	Air plug connector
		Code	Output signal
		S1	4-20mA
		S2	0-5V
		S3	0-10V
		S4	1-5V
		S5	0-5V
		S6	485 Digital signal(485RTU protocol)
			Code	Pressure Range
			See Table 1 Gauge pressure is G Absolute pressure is A
				Code	Thread size
				M1	M20*1.5
				M2	G1/2
				M3	G1/4
				M4	NPT1/2
				M5	NPT/4
				M6	M14*1.5
				M7	other

YD-31	B	S1	G17	M1	Stand for 25MPA 4-20 mA transmitter

FAQ

Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours.

Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.

Q: What's your warranty terms?
A: We offer 12 months warranty time.

Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
