Flowmeter Tuf2000M Ultrasonic Water Clamp On Sensor Module
Description Flowmeter Tuf2000M Ultrasonic Water Clamp On Sensor Module
TUF-2000P ultrasonic flow meter refers to a flow meter developed based on the principle that the propagation speed of ultrasonic waves in a flowing medium is equal to the sum of the average velocity of the medium to be followed and the speed of sound waves in a stationary medium. It is mainly composed of transducers and converters of different types such as Doppler method, velocity difference method, beam shifting method, noise method and correlation method.
Parameter Flowmeter Tuf2000M Ultrasonic Water Clamp On Sensor Module
| Items Performance & Parameter |
| Convertor | Principle | Transit- time ultrasonic flowmeter |
| Accuracy | ±1% |
| Operation | 4 keyboards operation |
| Signal Output | 1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1% |
| 1 way OCT pulse output( Pulse width 6~ 1000ms,default is 200ms) |
| 1 way Relay output |
| Signal Input | 3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level |
| Connect the temperature transducer Pt100, can finish the heat/energy measurement |
| Data Interface | Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS |
| Special Cable | Twisted-pair cable, generally, the length under 50 meters; Select the RS485, transmission distance can over 1000m |
| Pipe Installation Condition | Pipe Material | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed |
| Pipe Diameter | 15~ 6000mm |
| Straight Pipe | Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump |
| Measuring Medium | Type of Liquid | Single liquid can transmit sound wave, such as Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; Oil ( crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals ( alcohol, etc.); Plant effluent; Beverage; Ultra- pure liquids, etc. |
| Temperature | - 30~ 160℃ |
| Turbidity | No more than 10000ppm and less bubble |
| Flowrate | 0~±7m/ s |
| Working Environment | Temperature | Convertor:- 20~ 60℃；Flow Transducer:- 30~ 160℃ |
| Humidity | Convertor: 85% RH；Flow Transducer:can measure under water, water depth≤2m(tansducer sealed glue) |
| Power Supply | DC8~36V or AC10~30V |
| Power consumrtion | 1. 5W |
| Dimension | 95*95*35MM(Convertor) |
Features Flowmeter Tuf2000M Ultrasonic Water Clamp On Sensor Module
Dual-balance signal differential receiver/driver circuit to avoid interference of converter, TV tower, high voltage line etc.
Powerful Recording Function
Automatically record the following data:
1. The totalizer data of the last 512 days/128 months/10 years
2. The time and corresponding flow rate of the last 64 times of power on and off events
3. The working status of the last 32 days
Product Tags:
|
|

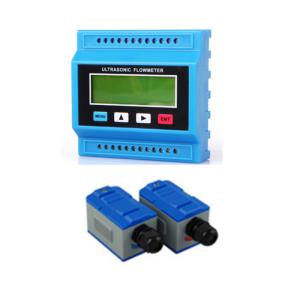

Portable Ultrasonic Water Flow Meter Module Tuf2000m Images
|
