Portable Handheld Hart 475 Field Communicator With Rechargeable Battery

Product Categories
Xi'an Yunyi Instrument Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Portable Handheld Hart 475 Field Communicator With Rechargeable Battery

Brand Name : YunYi

Model Number : Hart 475

Place of Origin : China

MOQ : 1

Price : USD175-USD389 PER PIECE

Payment Terms : D/A, D/P, T/T, Western Union

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 10DAYS

Packaging Details : Standard carton box

Communication signal connections : Dedicated cable, long 1.1m (3.6ft)

Display : 128 * 64 dot matrix LCD

Controls : Touch switch (four direction keys, 19 function keys, a p

Power supply : 4 1.2V rechargeable battery

Size : 180 * 80 * 54mm (L * W * H)

Weight : 700g

Name : Portable handheld hart 475 communicator

Contact Now

Description Portable handheld hart 475 communicator

HART Communicator is a portable terminal, which in conjunction with HART communication protocol using the instrument, its setting, change and display, it can monitor the input / output values and self-diagnosis. Set constant current output and zero.

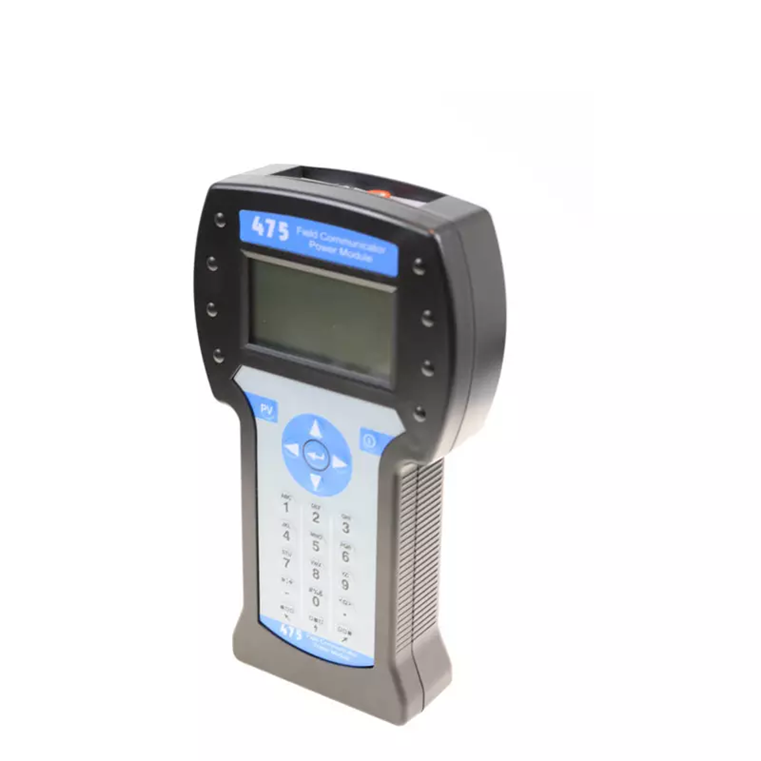

Detailed Images Portable handheld hart 475 communicator

Portable Handheld Hart 475 Field Communicator With Rechargeable BatteryPortable Handheld Hart 475 Field Communicator With Rechargeable Battery

Portable Handheld Hart 475 Field Communicator With Rechargeable BatteryPortable Handheld Hart 475 Field Communicator With Rechargeable Battery

Specification Portable handheld hart 475 communicator

Communication signal connections Dedicated cable, long 1.1m (3.6ft)
Communication lines Length: 1Km (0.62 mile) (0.75 ~ 1.25mm2)
Load resistance: 250 ~ 600Ω
Load Capacitance: 0.22uF less
Load Inductance: 3.3mH or less
Spacing and power cord: 15cm above (to avoid parallel lines)
Display 128 * 64 dot matrix LCD
Controls Touch switch (four direction keys, 19 function keys, a power switch)
Power supply 4 1.2V rechargeable battery
Size 180 * 80 * 54mm (L * W * H)
Weight 700g

Features Portable handheld hart 475 communicator

1 Online monitoring and communication
2 During the communication, the modulated signal is not interrupted 4 ~ 20mA DC signal
3 HART communication protocol with the use of the instrument can be shared
4 HART Communicator can be used with HART communication protocol using all instruments
5 Easy to operate
6 Large display screen (4 lines of 18 characters), using Chinese display, the user looked at a glance, easy to set up and change
7 Information from diagnosis / protection functions
8 Self-check function
9 Formatting password protection
10 Low voltage alarm display


Portable Handheld Hart 475 Field Communicator With Rechargeable Battery
