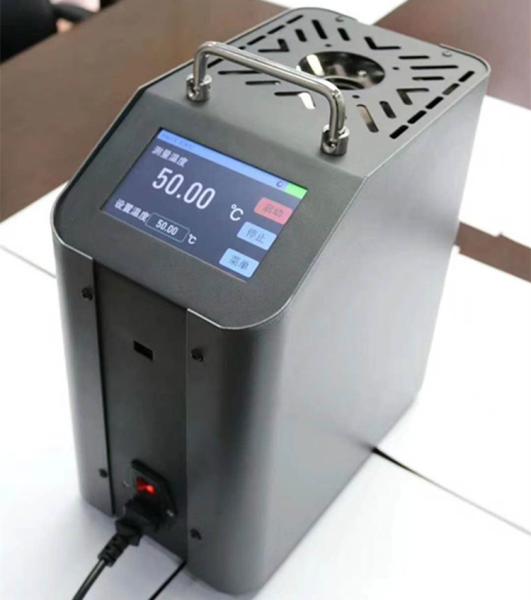

W150 Smart Dry Block Temperature Calibrator Touch Screen 0.1% Accuracy

Brand Name : Yunyi

Model Number : W150, W650 , W1000, W1200

Certification : CE

Place of Origin : China, Xi'an

MOQ : 1

Price : 1386.5 ~1789.5$/pc

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 100pcs / month

Delivery Time : 2~5 working days

Temperature : -30~150, 50~600, 300~1200 ℃

Power : 210~230V

Model : W+ WT type

Connector : British standard, American standard, European standard

Contact Now

W series -30~150, 50~600, 300~1200 ℃ Dry Block Temperature Calibrator

Introduction

The temperature control circuit is measured with high precision sensor, which ensures the precision is higher than that of other domestic manufacturers, and the technology meets the international standard. The world's first touch operation is simple and fast.

2.1 Main features

· Small volume, light weight, easy to carry;

· Multiple types of inserted into the pipe and can meet different size, the number of sensor test and calibration. And can customize according to the special needs of users;

· Good level of temperature, vertical temperature field;

· Have been inserted into the depth of the same industry leading;

· 5.0 -inch TFTLCD touch-screen,

Model No W150(T) W600(T) W1000(T)/ 1200
Temperature Range -30 ~ 150℃ 50 ~ 600℃ 300 ~ 1000℃/1200
Heating Rate

30~100: 20min

30~150: 40min

30~300:7 min

30~600:25min

 30~1200:75 min
Accuracy ≤±0.2℃ 400℃ ≤±0.35℃ 400-600℃≤±0.5℃ ≤±1.2℃
Diameter of Soaking Pit 30mm 30mm 40mm
Vertical Temperature Field 50mm axial uniformity (bottom up 50mm)
Horizontal Temperature Field ≤±0.05℃ ≤±0.05℃ ≤±0.2℃
Insert Depth 165mm 150mm 135mm
Temperature Unit ℃ or ℉
MIX Power 500W 800W 3000W
Control Accuracy 0.1% or 0.2%
Power Supply 220v± 10%; 45-60hz; or 110v± 10%
Display Resolution ±0.1℃ or ±0.01℃
Size 310*190*340mm 250*150*310mm 310*190*340mm
Weight 15KGS 11KGS 12KGS
