Druck Low Differential Pressure Transducer Sensor Air

Name: Druck Low Differential Pressure Transducer Sensor Air
Brand: Yunyi
Price: 1 USD

Brand Name : Yunyi

Model Number : FM114

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 500pcs per week

Delivery Time : 5-8 work days

Packaging Details : carton

Name : Druck Low Differential Pressure Transducer Sensor Air

Material : ABS plastic

Pressure : 0-10000pa

Output : 4-20mA,

Power : 24V

Temperature : -20-80c

Display : Yes

Medium temperature : - 40-100 ℃

Ambient temperature : - 40-85 ℃

Contact Now

Druck Low Differential Pressure Transducer Sensor Air

The wind pressure transmitter adopts aluminum alloy or stainless steel casing, and applies isolation technology. The sensor is converted into a standard current or voltage signal after precise temperature compensation. It can measure the pressure or flow, and realize the control of automatic measurement in the production process.

Features Druck Low Differential Pressure Transducer Sensor Air

Measuring medium: gas (compatible with contact material, humidity <90%, no condensation)

Overall material: shell ABS engineering plastic

Diaphragm silicon chip (contact)

Silicone for impulse pipe (contact)

Φ 6 pagoda mouth H59 copper (contact)

Cable locking head nylon (locking wire diameter 5-8mm)

LCD display without backlight

Parameter Druck Low Differential Pressure Transducer Sensor Air

Range:

Druck Low Differential Pressure Transducer Sensor Air

Parameter Druck Low Differential Pressure Transducer Sensor Air

Pressure mode:	differential pressure
Output signal:	4-20mA, RS485
Power supply voltage:	12-36vdc
Accuracy class:	0.5% FS (range ≥ 1kPa) 1% FS (range < 1kPa)
Working conditions:	medium temperature - 40-100 ℃
Ambient temperature	- 40-85 ℃
Temperature compensation:	- 10 ～ 60 ℃
Seismic performance:	10g (20... 2000Hz)
Response frequency:	≤ 50Hz
Stable performance:	± 0.3% FS / year (range ≥ 1kPa) ± 0.5% FS / year (range < 1kPa)
Temperature drift:	± 0.03% FS / ℃ (within the temperature compensation range)
Protection grade:	IP65
Load characteristics:	current type load ≤ {(us-7.5) ÷ 0.02 (US = supply voltage)} Ω

Druck Low Differential Pressure Transducer Sensor Air

Product Tags:

Low Differential Pressure Transducer

20mA Air Differential Pressure Sensor

ABS Differential Pressure Transducer

China Druck Low Differential Pressure Transducer Sensor Air factory

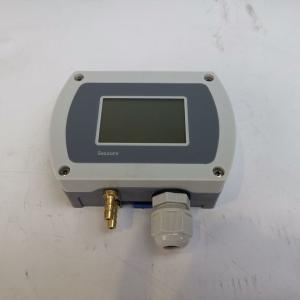

Druck Low Differential Pressure Transducer Sensor Air Images
