Piston Type Dead Weight Tester YS Series Pressure Gauge Manometer

Piston Type Dead Weight Tester YS Series Pressure Gauge Manometer

Decription

1. calibration standard which uses a piston cylinder on which a load is placed to make an equilibrium with an applied pressure underneath the piston.
2. The pistons and piston cylinder is made of the carbide tungsten carbide materials which has high strength, high hardness, and low temperature , so,it has wide working temperature and stable performance of 20 + / - 5 ℃.
3. The weight of the pressure gauge is made of stainless steel
4. The piston top and bottom moves ±1.5mm
5. The piston runs smoothly, the pressure fluctuation is minimal and the value is accurate.
6. Over 25MPa, Ensure the high sensitivity of the pressure gauge, we use the octyl sebacate as transmission medium


Application

Piston gauges are used to calibrate customer piston gauges and pressure sensing devices

Specification

YS-6 0.04～0.6MPa.
YS-60 0.1～6MPa.
YS250 0.5～25MPa.
YS600 1～60MPa

Features

• high sensitivity
• rotation of the piston is more stable
• use displacement sensor monitoring
• sensitive, smart, accurate

Detailed image

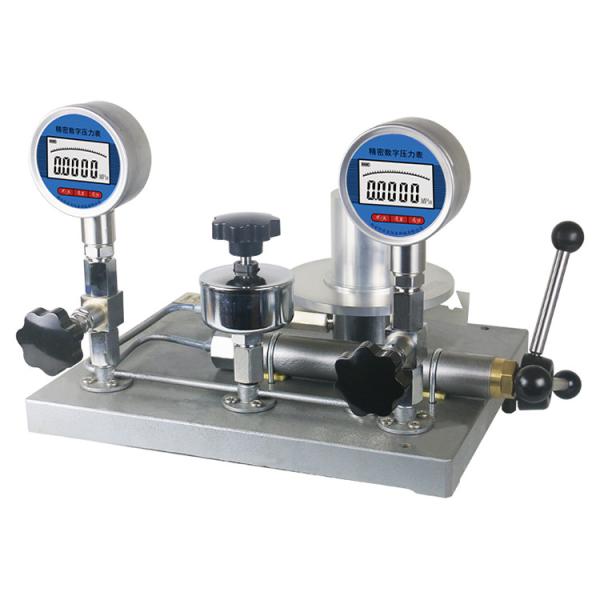

Dead Weight Pressure Gauge Manometer

Piston Type Pressure Gauge Manometer
