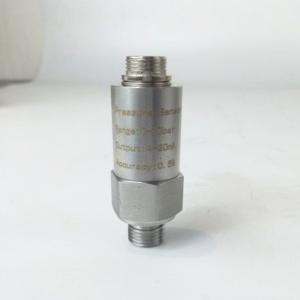

10V Interference Resistant Hydraulic Pressure Transmitter

  • 1
  • 2

Brand Name : YUNYI

Model Number : YD-35

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 500pcs per week

Delivery Time : 5-8 work days

Packaging Details : Anti-static bag + carton

Name : Cost Of 1/4 Smart Water Pressure Sensor Voltage Output 0-10v 12v For Sale

Material : stainless steel

Pressure : 0-10bar

Output : 0-10V

Power : 12V

Temperature : -20-80c

Medium : -20...+125℃

Response time (10 ... 90 %) : ≤2ms

Contact Now


The YD series Smart Water Pressure Sensor is a precision-engineered solution designed for industrial pressure measurement applications. It offers a wide range of electrical and process connection options to meet diverse requirements. Equipped with MEMS micro machining components, this sensor features a fully sealed structure for excellent protection and adaptability to various working conditions. The compact stainless steel case enhances durability and is available with environmental protection ratings up to IP 65.

Pressure range0~ -1bar1bar2bar5bar10bar16bar20bar25bar30bar
Maximum pressure*2bar2bar4bar10bar20bar32bar40bar50bar60bar
Burst pressure**4bar4bar8bar20bar40bar64bar80bar100bar120bar
Pressure range40bar50bar60bar
Maximum pressure*80bar100bar120bar
Burst pressure**160bar200bar240bar
*Pressure applied up to the maximum rating will cause no permanent change in specifications but may lead to zero and span shifts
**Exceeding the burst pressure may result in destruction of the transmitter and possible loss of media


MaterialsGas or liquid compatible with ceramic
O-ringNBR (FKM or EPDM)
Signal output0.5-4.5V / 1-5V / 0-5V , 3-wire; 0-10V, 3-wire; 4-20mA, 2-wire;
Power supply

5V with signal output 0.5-4.5V / 1-5V / 0-5V, 12...32V with signal output 0...10V,
9...32V with signal output 4...20mA

Response time (10 ... 90 %)≤2ms
Isolation voltageDC 500V
Accuracy

≤ 1 % F.S @25℃ (Includes linearity, hysteresis and repeatability.)
≤3% F.S@ {-40~125℃} (limit point calibration)

1-year stability≤ 0.05 % F.S
Permissible temperature of
Medium-20...+125℃
Ambient-40...+100℃
Storage-40...+100℃
Compensated temperature range-20...125℃
CE - conformity
Shock resistance1000g according to IEC 60068-2-27 (mechanical shock)
Vibration resistance20g according to IEC 60068-2-6 (vibration under resonance)
Wiring protectionProtected against reverse polarity, overvoltage and short circuit
Weight70g
ConnectionG1/4 (NPT1/4, G1/4 and others available)



Features:

Stainless steel case sturdy and durable
Wide temperature range:-40~125℃
Pressure ranges from -1 bar to 60bar
0.5-4.5V ,1-5V ,0-5V ratiometric outputs



Applications:

Armarium, agricultural machinery
Hydraulic and pneumatic control system
Pump, fitness equipment, household appliances
Liquid level measurement
Test equipment



Ordering Information Cost Of 1/4 Smart Water Pressure Sensor Voltage Output 0-10v 12v For Sale

ModelYD35
RangeK:0~X kPa P: PSI, K: kPa, B: bar, M:MPa, m: mH2O
Accuracy1: 1%FS; 2: 0.5%FS; 3: 0.25%FS;
OutputM:mV, V1:0.5-4.5V; V2:0-5V; V3:0-10V; A:4-20mA; S:RS485 S0:others
PowerP1:5VDC, P2:12-32VDC P0: other
Connection

N1: NPT1/8; N2: NPT1/4; NPT1/2; G1:G1/8 ; G2:G1/4; G3:G1/2;

M0:other

WiringW1:Cable, W2:Horsman W3:Pakard W4:M12
TemperatureT1: -20~125℃; T0:other
YD3510b2AP2M1W2T1 Factory code





10V Interference Resistant Hydraulic Pressure Transmitter
