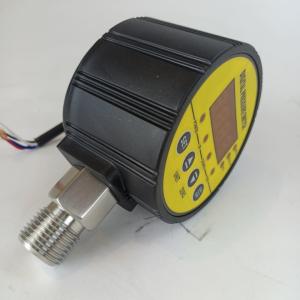

Vacuum Air Digital Pressure Gauge LED Display Y-60 RS485 24VDC

Name: Vacuum Air Digital Pressure Gauge LED Display Y60 RS485 24VDC
Brand: Yunyi
Price: 65 USD

China Vacuum Air Digital Pressure Gauge LED Display Y-60 RS485 24VDC factory

Brand Name : Yunyi

Model Number : Y-60

Certification : ISO CE

Place of Origin : China

MOQ : 1

Price : USD$65-USD$85/Unit

Payment Terms : T/T, Western Union ,paypal

Supply Ability : 1000 unit/month

Delivery Time : 5-10 working days

Packaging Details : Standard export package

Model : Y-60

Display : LCD

Pressure range : -0.1~0~60mpa

Stability : ≤ 0.2% / year

Load capacity : <24V1.2A

Control accuracy : ≤ ± 0.5% FS

Power supply : 24V ± 20%

Protection class : IP65

Contact Now

Description of Digital Vacuum Air Pressure Gauge LED Display Y-60 RS485 24VDC

This remote hydraulic digital manometer pressure gauge with 4 ~ 20mA remote signal output, or RS485 signal output is based on the standard MODBUS RTU485 communication protocol,used four digits to show real-time pressure.The transmission distance of pressure signal can be more than 500 meters.The series of digital remote pressure gauge with built-in pressure sensor, has powerful function.Users can change the pressure unit, approve zero error, correct filter constant, etc. Using 304 stainless steel shell and connector, waterproof cable appears, IP65, it has a very wide range of media applicability.The product is mainly used to replace the traditional pointer pressure gauge or the pressure transmitter with display.

Features of Digital Vacuum Air Pressure Gauge LED Display Y-60 RS485 24VDC

1.	Good anti-seismic capability, long term reliability, and long working life
2.	4~20mA or RS485 optional
3.	Four digits LED display
4.	High capacity of resisting disturbance, output signal >500m
5.	Dial Diameter 60mm with Axial / radial installation ways
6.	Wide measuring range from vacuum to 60MPa, and has a positive and negative gauge range

Specification of Digital Vacuum Air Pressure Gauge LED Display Y-60 RS485 24VDC

Vacuum Air Digital Pressure Gauge LED Display Y-60 RS485 24VDC

Drawing of Digital Vacuum Air Pressure Gauge LED Display Y-60 RS485 24VDC

Application of Digital Vacuum Air Pressure Gauge LED Display Y-60 RS485 24VDC

Heating system
Frequency conversion water supply
Hydraulic and pneumatic systems
Instead of mechanical pressure switch
Instead of the traditional remote pressure gauge
