Gas Pressure Regulator Valve Oxygen Water Pressure Regulator 3000 Psi Back Pressure Regulator Valve

Brand Name : Yunyi

Model Number : YR32

Certification : CE

Place of Origin : China

MOQ : 1

Price : 138~169USD/PCS

Payment Terms : T/T, Western Union

Supply Ability : 100pcs per week

Delivery Time : 10 work days

Packaging Details : Carton Packaging

Thread Connection Type : 1/4 or 1/2 NPT

Max Inlet Pressure : 3000psi

Applicable temperature : -40℉~+165℉(-40℃~+74℃)

Leak rate : 2x10-8 atm cc/sec He

Weight : About 1.5kg

CV value : 0.02, 0.06, 0.08, 0.2

Contact Now

China Gas Pressure Regulator Valve Oxygen water pressure regulator 3000 psi back pressure regulator valve

Description

YR32 series back pressure regulator is with single-stage diaphragm vacuum structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.

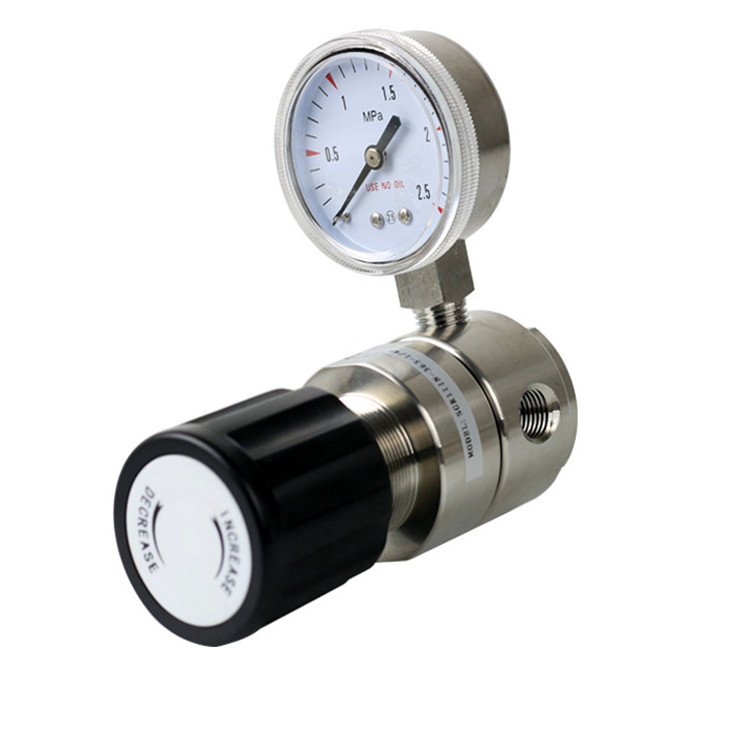

Detail Image

Gas Pressure Regulator Valve Oxygen Water Pressure Regulator 3000 Psi Back Pressure Regulator ValveGas Pressure Regulator Valve Oxygen Water Pressure Regulator 3000 Psi Back Pressure Regulator ValveGas Pressure Regulator Valve Oxygen Water Pressure Regulator 3000 Psi Back Pressure Regulator ValveGas Pressure Regulator Valve Oxygen Water Pressure Regulator 3000 Psi Back Pressure Regulator Valve

Specification

Inlet pressure: 0-3000 psi
Safety testing pressure: 1.5 times of maximum inlet pressure
O-ring seal: Viton material
With one gauge or without gauge
Laboratory, Gas analysis test, Fluid control, Petrochemical industry, Test Equipment

Features

1. Single stage type relief structure
2. Maternal and diaphragm use hard seal form
3.. The internal structure easy to purge and with filter
4. Can use panel or wall mounting

Application

It's a normally-closed valve installed at the END of a piping system to provide an obstruction to flow and thereby regulate upstream (back) pressure. The back pressure regulator is called upon to provide pressure in order to draw fluid off the system.
