Smart Water Precision Appliance 0 600 Bar Pressure Gauge Digital
Description Smart Water Precision Appliance 0 600 Bar Pressure Gauge Digital

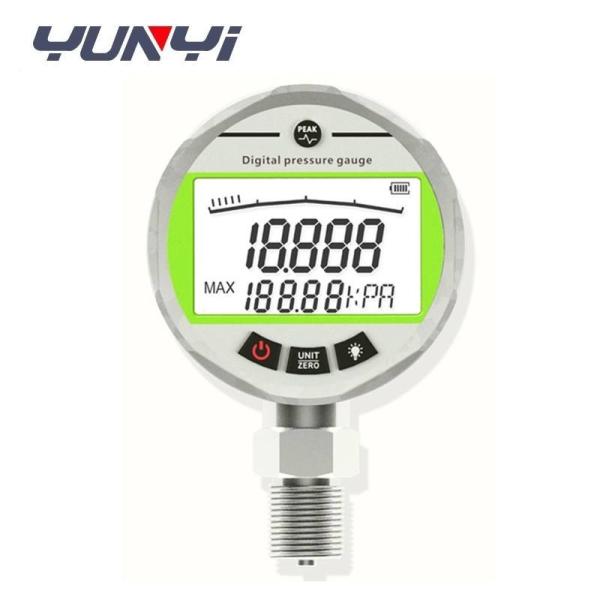

This YK-80 Intelligent digital pressure gauge is an online measuring instrument mainly controlled by a single-chip microcomputer. This product adopts high-quality pressure sensor core, which has the advantages of high accuracy, corrosion resistance, impact resistance, vibration resistance, low temperature drift, and good stability; it uses a low-power microprocessor to delay battery life, without external power supply, installation and use Convenience. It can be used for gauge pressure, absolute pressure, and differential pressure detection. It has a variety of forms, including ordinary type, explosion-proof type, diaphragm type, etc.; it can meet various measurement needs. It fundamentally overcomes many shortcomings of pointer pressure gauges, such as low accuracy, poor reliability, and high damage rate, especially in corrosive and vibrating locations. This product is widely used in petroleum, chemical, aviation and various industrial gas and liquid fields.
Parameter Smart Water Precision Appliance 0 600 Bar Pressure Gauge Digital
| Range | -0.1~0~100MPa | Accuracy | 0.2 ,0.5,1 |
| Overload capacity | 1.5 times full | Pressure Type | Vacuum,Gauge,Absolute Pressure |
| Response time: | ≤50ms | Battery voltage | Two AAA 7 batteries (3V) |
| Display | up to 4 dynamic pressure display | Measuring medium: | water, gas, etc. compatible with stainless steel |
| Connection size | M20x1.5 Male or oem | Pressure unit | MPa/KPa/Bar/Psi/Kg/cm2 |
| Case material | SS | Working temperature: | -10～60°C |
Features Smart Water Precision Appliance 0 600 Bar Pressure Gauge Digital
1. The keys are made of rubber conductive keys, which are gentle to touch, easy to rebound, and have a longer life span.
2. The instrument interface use stainless steel, high hardness, impact resistance, anti-rust and anti-fouling
3. FSTN large LCD screen, clear display, easy to read, viewing angle and low temperature resistance performance is stronger than ordinary STN
4. Using high-precision imported AD chip, low power consumption and fast processing speed
5. Optimized circuit design, reduce signal transmission loss, accurate sensing, accurate measurement
Order guide Smart Water Precision Appliance 0 600 Bar Pressure Gauge Digital
| YK-80 | Digital Pressure Gauge |
| | | Code | Measuring range |
| | | | -0.1~0MPa, 0.6MPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa,25MPa, 40MPa..100Mpa |
| | | | Code | Process connection |
| | | | M1 | M20*1.5 Male | M4 | NPT3/8 Male thread |
| | | | M2 | G1/4 Male thread | M5 | NPT1/4 |
| | | | M3 | G1/2 Male thread | M6 | Customized |
| | | | | Code | Power supply |
| | | | | P1 | AAA 7 batteries |
| | | | | P2 | Lithium battery |
| | | | | | Code | Accuracy |
| | | | | | 2 | 0.2 |
| | | | | | 3 | 0.4 |
| | | | | | 4 | 1 |
