Description Micro pressure manometer differential air pressure gauge
2000 series differential pressure gauge minimum range 0-30Pa, maximum range 0-30KPa. There are as many as 88 kinds of range and metric / imperial units to choose from. This differential pressure gauge using frictionless magnetic components, can rapidly measure the micro-pressure air or non-corrosive gases, including positive, negative (vacuum) or differential. No wear, hysteresis and clearance. Not filling, vaporization and freezing. This design has anti-vibration, anti-shake and high overpressure capability, you can guarantee access to high precision. The design impact, shock and overload protection.
Specification Micro pressure manometer differential air pressure gauge
| Medium: | air and non-combustible, compatible gases (optional gas) |
| Housing: | cast aluminum housing or ABS shell, glass beveled panels. Dark gray coating, can withstand 168 hours salt spray test |
| Accuracy: | 2% FS (mm units, and the range with the corresponding pa) |
| Pressure range:. | -20Hg To 15 psig (-0.677 bar to 1.034 bar) |
| Temperature range: | 20 to 140 ° F (-6.67 to 60 ° C) |
| Hole size: | 114mm |
| Mounting Orientation: | Diaphragm in vertical |

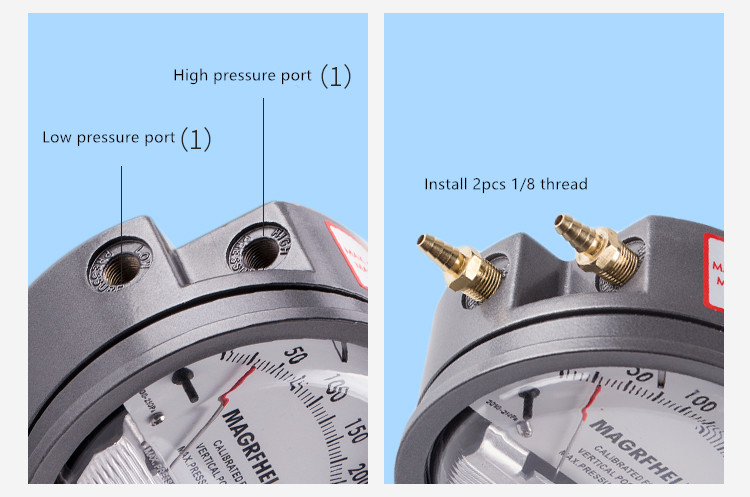

| Connections: | same 1/8 "NPT high and low pressure fittings, one pair on the side, one pair in the back |
| Weight: | 500g / only |

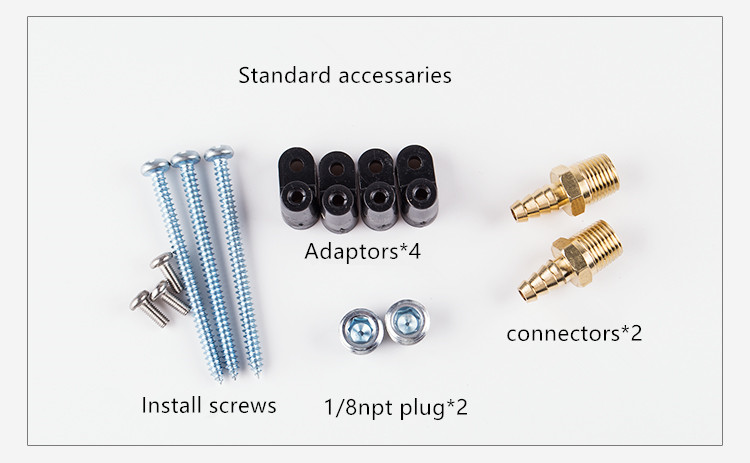

| Standard accessories: | 2pcs 1/8 "NPT threaded connectors for high and low pressure fittings can be connected with a rubber tube; two 1/8" NPT plug for blocking the remaining two high and low pressure ports; three a threaded countersunk mounting coupling (mounting ring, according to buckle holder for three interfaces to replace MP and count on attachments HP) |

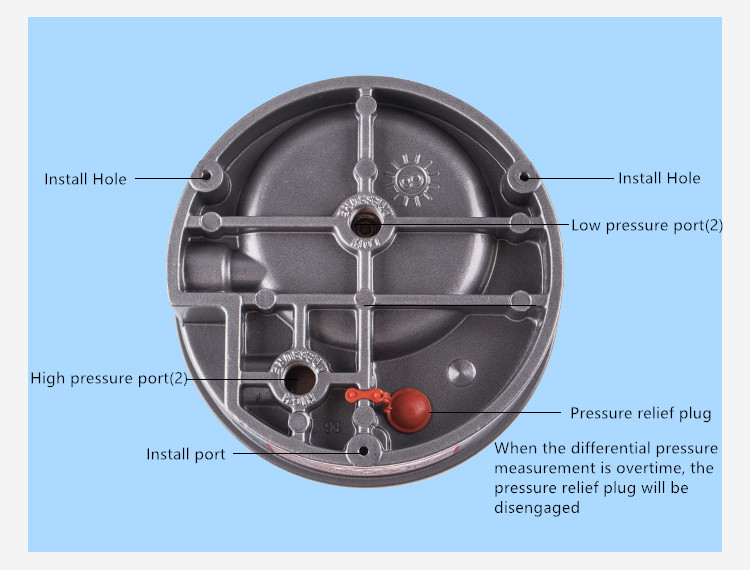

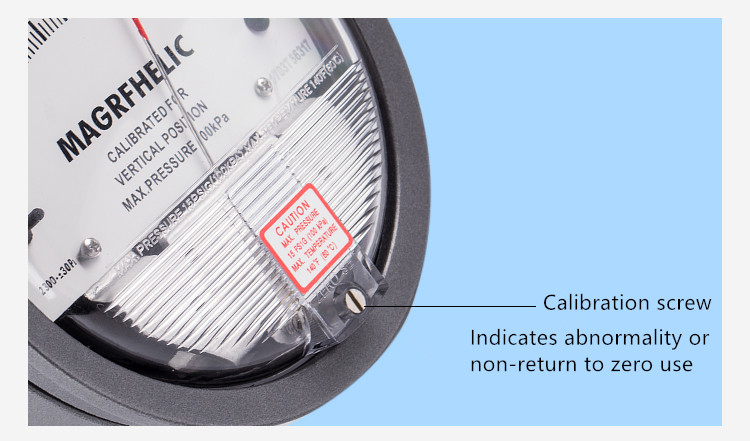

Detailed Images Micro pressure manometer differential air pressure gauge
Dimension and installation Micro pressure manometer differential pressure gauge
Applications Micro pressure manometer differential air pressure gauge

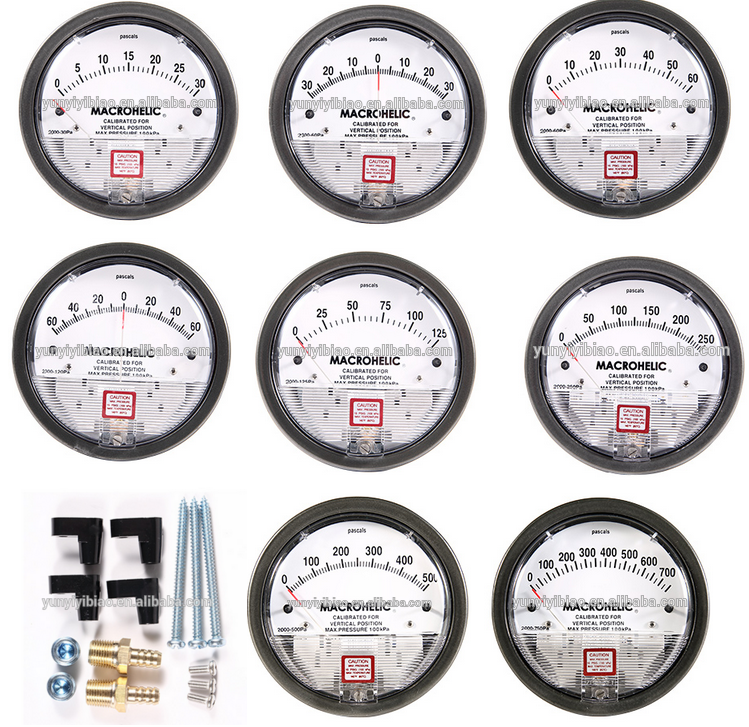

Selection Guide Micro pressure manometer differential pressure gauge
| Model Number | Range Pa | Model Number | Range In wc |
| YD-2000-60PA | 0-60 | YD-2000-00 | 0-.25 |
| YD-2000-125PA | 0-125 | YD-2000-0 | 0-.50 |
| YD-2000-250PA | 0-250 | YD-2001 | 0-1.0 |
| YD-2000-500PA | 0-500 | YD-2002 | 0-2.0 |
| YD-2000-750PA | 0-750 | YD-2003 | 0-3.0 |
| Zero Center Ranges | YD-2004 | 0-4.0 |
| YD-2300-120PA | 60-0-60 | YD-2005 | 0-5.0 |
| YD-2300-250PA | 125-0-125 | YD-2006 | 0-6.0 |
| YD-2300-500PA | 250-0-250 | YD-2008 | 0-8.0 |
| Model Number | Range kPa | YD-2010 | 0-10 |
| YD-2000-1KPA | 0-1 | YD-2015 | 0-15 |
| YD-2000-1.5KPA | 0-1.5 | YD-2020 | 0-20 |
| YD-2000-2KPA | 0-2 | YD-2025 | 0-25 |
| YD-2000-3KPA | 0-3 | YD-2030 | 0-30 |
| YD-2000-4KPA | 0-4 | YD-2040 | 0-40 |
| YD-2000-5KPA | 0-5 | Zero Center Ranges |
| YD-2000-8KPA | 0-8 | YD-2300-0 | .25-0-.25 |
| YD-T2000-10KPA | 0-10 | YD-2301 | .5-0-.5 |
| | | YD-2302 | 1-0-1 |
| Zero Center Ranges | YD-2304 | 2-0-2 |
| YD-2300-1KPA | .5-0-.5 | YD-2310 | 5-0-5 |
| YD-2300-3KPA | 1.5-0-1.5 | YD-2320 | 10-0-10 |
| | | YD-2330 | 15-0-15 |
| Model Number | Range MM wc | Model Number | Range CM wc |
| YD-2000-6MM | 0-6 | YD-2000-15CM | 0-15 |
| YD-2000-25MM | 0-25 | YD-2000-20CM | 0-20 |
| YD-2000-50MM | 0-50 | YD-2000-25CM | 0-25 |
| YD-2000-80MM | 0-80 | YD-2000-50CM | 0-50 |
| YD-2000-100MM | 0-100 | YD-2000-80CM | 0-80 |
| | | YD-2000-100CM | 0-100 |
