LCD Display Ultrasonic Open Channel Flow Meter RS232 DC12V

Name: LCD Display Ultrasonic Open Channel Flow Meter RS232 DC12V
Brand: yunyi
Price: 289 USD

China LCD Display Ultrasonic Open Channel Flow Meter RS232 DC12V factory

Brand Name : yunyi

Model Number : YD322-F

Certification : ce

Place of Origin : china

MOQ : 1

Price : $289/pcs

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 1000pcs/month

Delivery Time : 10days

Display resolution : based on input signal

Display : LCD

Voltage output : DC12V or 24V

Signal output : RS485/RS232, 4~20mA

Contact Now

Ultrasonic Open Channel Flow meter

Description Ultrasonic Open Channel Flow meter

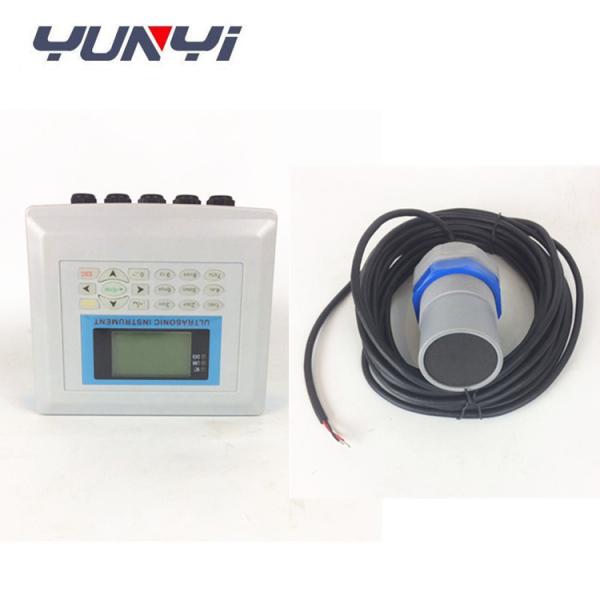

It consists of two elements, a host, which has display and an integral keypad for programming, and a transducer, which must be mounted directly above the surface to be measured. It can be widely applied to the environmental protection, water treatment, irrigation, chemical, and other industries.

Specification Ultrasonic Open Channel Flow meter

Display resolution	based on input signal
Calibration	factory calibration or on-site calibration
Display	LCD
Voltage output	DC12V or 24V
Signal output	RS485/RS232, 4~20mA
Work voltage	AC160V~250V
Normal power consumption	<5W
Work temperature	0~50℃
Humidity	≤85RH
Pressure	normal

Features Ultrasonic Open Channel Flow meter

Low sensor power consumption, easy installation and orientation, application wildly ,standard 4-20mA output, use it separately as liquid level meter
Easy operation, widely used in thin plate right-angle weir, triangular weir, parshall flume and so on. When power off, it can save 10 years.
Base on user's demand, it can attach flash disk, micro printer and storage battery.

Applications Ultrasonic Open Channel Flow meter

Right-angle rectangular weir,

Triangular weir,

Width weir,

Parshall flume
